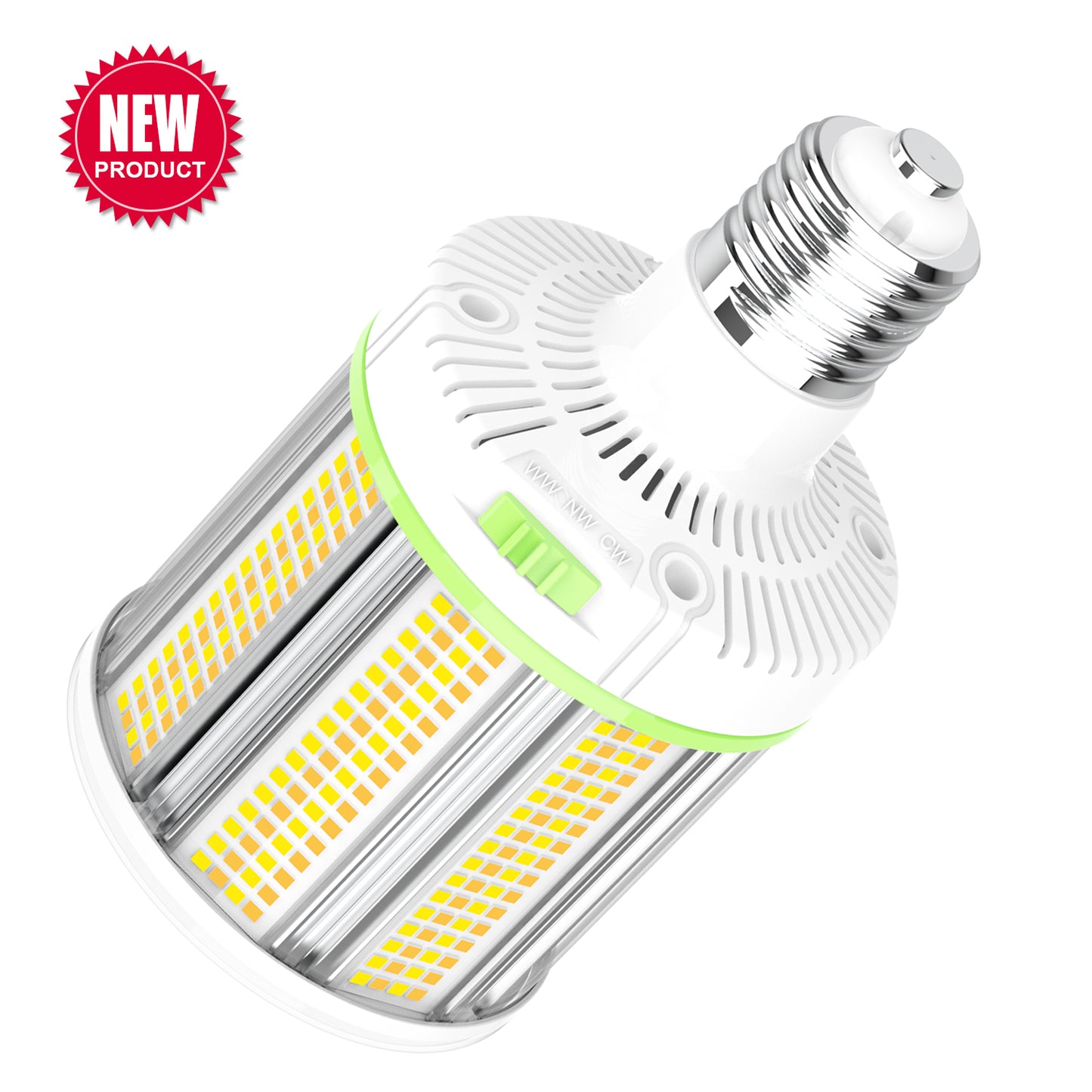

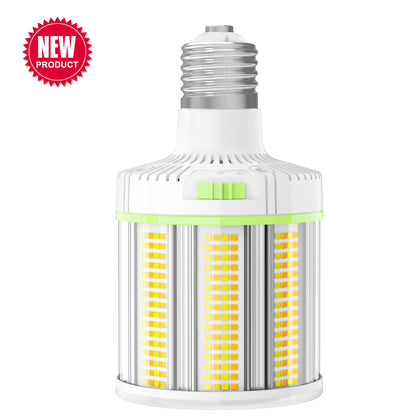

LED RETROFIT LIGHTING 100-277vAC 11,250lm 75W/60W/45W ADJUSTABLE 4500K/5000K/5700K ADJUSTABLE (E39, E40 Socket Mount) HPS, MH, HID REPLACEMENT

SPECIFICATION SHEET

Features
* Adjustable wattages: 60%/ 80%/ 100%
* Adjustable CCT: 4500K/ 5000K/ 5700K
* 40% more LEDs compared to general corn bulbs available in the market
* Suitable for replacing 100~600W metal halide/HPS
* Transparent PBT Cover, Aluminum fin heat sink
* Equipped with 2 fans for active cooling
* Available in 30~150W power range
* Supports 100~277V voltage input
* Provides a 360-degree beam angle
* 6K High voltage surge test passed
* Offers a lifespan of 50,000 hours
* E39/ E40 Mogul screw base
* SMD2835, 150lm/w LED chips
* Emits no UV or IR radiation
* No magnetic disturbance driver
* 5 years warranty

Ideal Replacement
CFL, HID, MH & HPS Lamps in existing Fixtures.

Compact Size
Easily installed into Standard Fixtures. Easy Installation & Retrofitting. Simply bypass Ballast and Screw-in.

Beam Angle
360°Illumination with high Lumen Efficacy of 130 Lm/w – perfect for High Bays, Shoe Box, Street and Roadway Lighting applications.

Flexible Mounting
E39/E40 BASE

Ultra-Long Design Life
Up to 60,000 hours Up to 14 years at an on-time of 12 hrs./day or up to 17 years at on-time of 10 hrs./day. (Depending upon the ambient temperature of the installation location.

Solid-State
NO RADIO INTERFERENCE DRIVER - High-Shock and High-Vibration Resistant

Instant Start & Restart
No warm up time required even in Extreme Cold.

Instant On and Flicker-Free
No restrike time or waiting for 10-20 minutes for the lights to turn back on like HID’s.

Enhances Vision
Zero Dark Spots for greater Visibility & Safety No Noise or RF Interference.
No UV Emissions/Does Not attract Insects. Radiation/Emissions-Free
No Harmful IR, No RFI/EMI/HD Fully Encapsulated with Heat and Impact Resistant, UV Protected, Non-yellowing, Optical grade PC Lens.

Wide Operating Temperature Range
-22°F to +104°F [-30°C to +40°C] Patented Technology-Delivers Maximum,
Lifetime Energy Savings Ideal for use with Renewable Energy: Solar &
Wind Power Eliminates the hassle of repeated re-lamping Shortest
Payback Period and High ROI Longer Life = Increased Sustainability +
Dependability.

5 Year Warranty
