    500 Watt 67,500 Lumen Stadium Sport Field LED Lighting 7 Year Warranty 40°, 60°, 90° 120-277VAC or 347-480VAC

    500 Watt 67,500 Lumen Stadium Sport Field LED Lighting 7 Year Warranty 40°, 60°, 90° 120-277VAC or 347-480VAC

    $744.95
    $829.00 $744.95
    Sale Sold out
    DEGREE
    VOLTAGE



    DESCRIPTION
    By providing superior high output and high efficiency, sports light series,
    is the ideal solution for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. Dynamic thermal management design maximizes heat dissipation and significantly improves the life of luminaires. Built-in surge suppression adds an extra layer of protection to the luminaire driver. Versatile mounting bracket for hassle-free installation.

    LED High Mast Lighting 500W Advantages:

    • Arrayed with high efficiency Seoul chips  to create super high lighting efficacy.

    • The latest LED technology, cold forging heat-dissipation design to achieve long operating life.

    • Equipped with Mean Well drivers to ensures the durability of the product.

    • Energy saving 80%~85% to save a tremendous amount of money.

    • 7-year warranty for 100-277V version, 5-year warranty for 347-480V version.

    Wattage     500W

    Luminous Flux   125-130LM/W

    Input Voltage  100-277V or 347-480V (please select at tab)

    Power Factor  >0.95

    CRI   ≥70Ra, or ≥90Ra

    Driver Brand   Meanwell

    Light Distribution   40°, 60°, 90° (please select at tab)

    Color Temp.  5000K (others KELVIN available by special order)

    Dimming Options   0-10V dimming / Zigbee wireless dimming available

    Zigbee Control   On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP).

    Photocontrol     Twist-lock photocell available

    SPD        20kV SPD standard (40kV optional)

    IP Rating              IP67

    Operating Temp.   -40°C- 40°C / -40°F - 104°F

    Lifespan >100,000 Hrs (L70 @ 25°C)

    Warranty 7-year warranty for 100-277V version, 5-year warranty for 347-480V version

    Certificates         UL/CB/CE/ENEC/ROHS/PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC (pending)

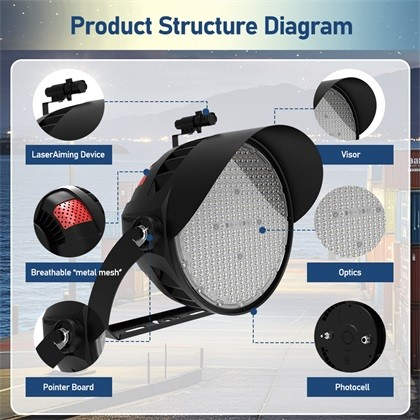

    CONSTRUCTION
    ● Sealed die-casting profile for outdoor applications
    ● Low profile, 3G vibration rated compact design minimizes wind load requirements.
    ● Housing is completely sealed against moisture and environmental contaminants (IP66).


    OPTICS
    ● Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
