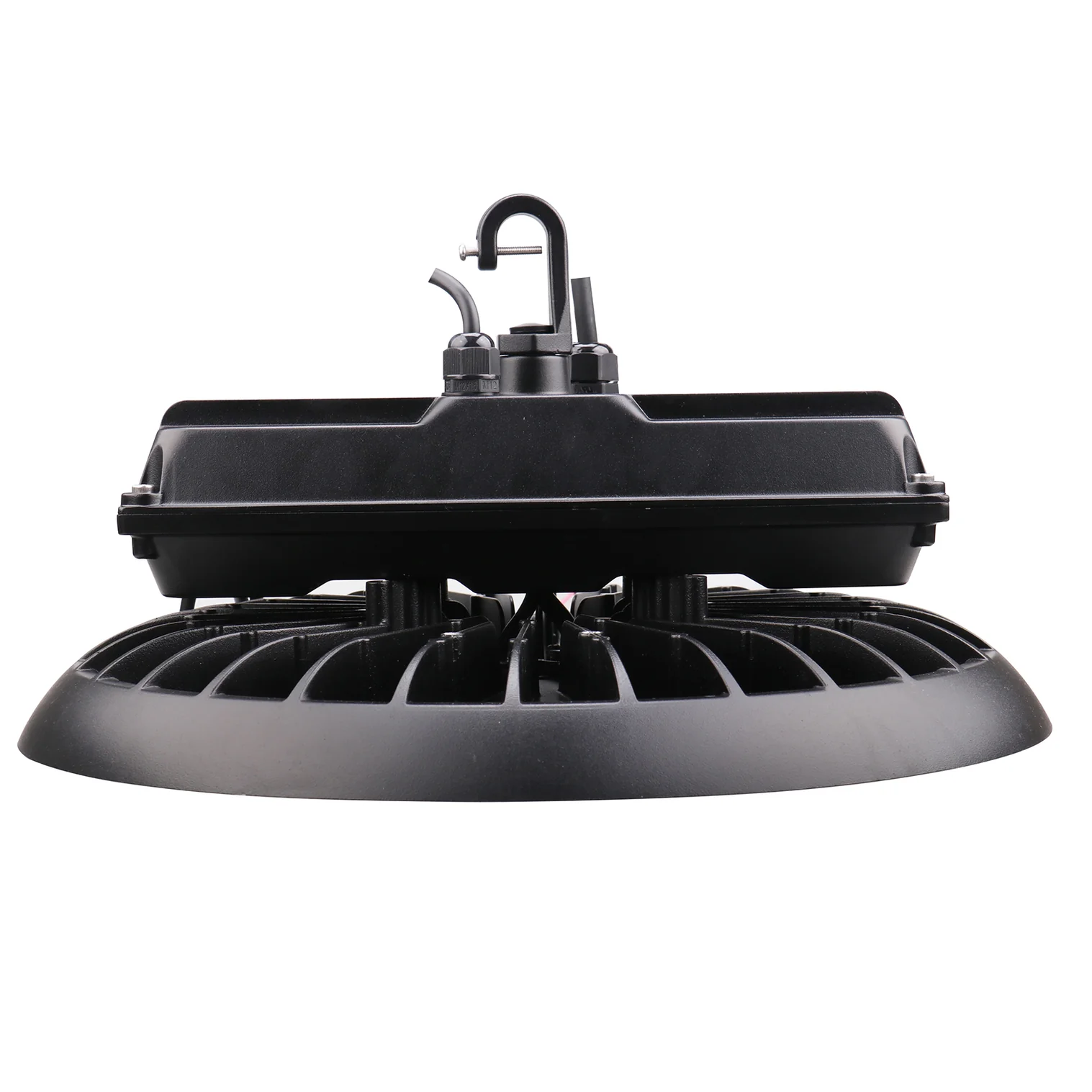

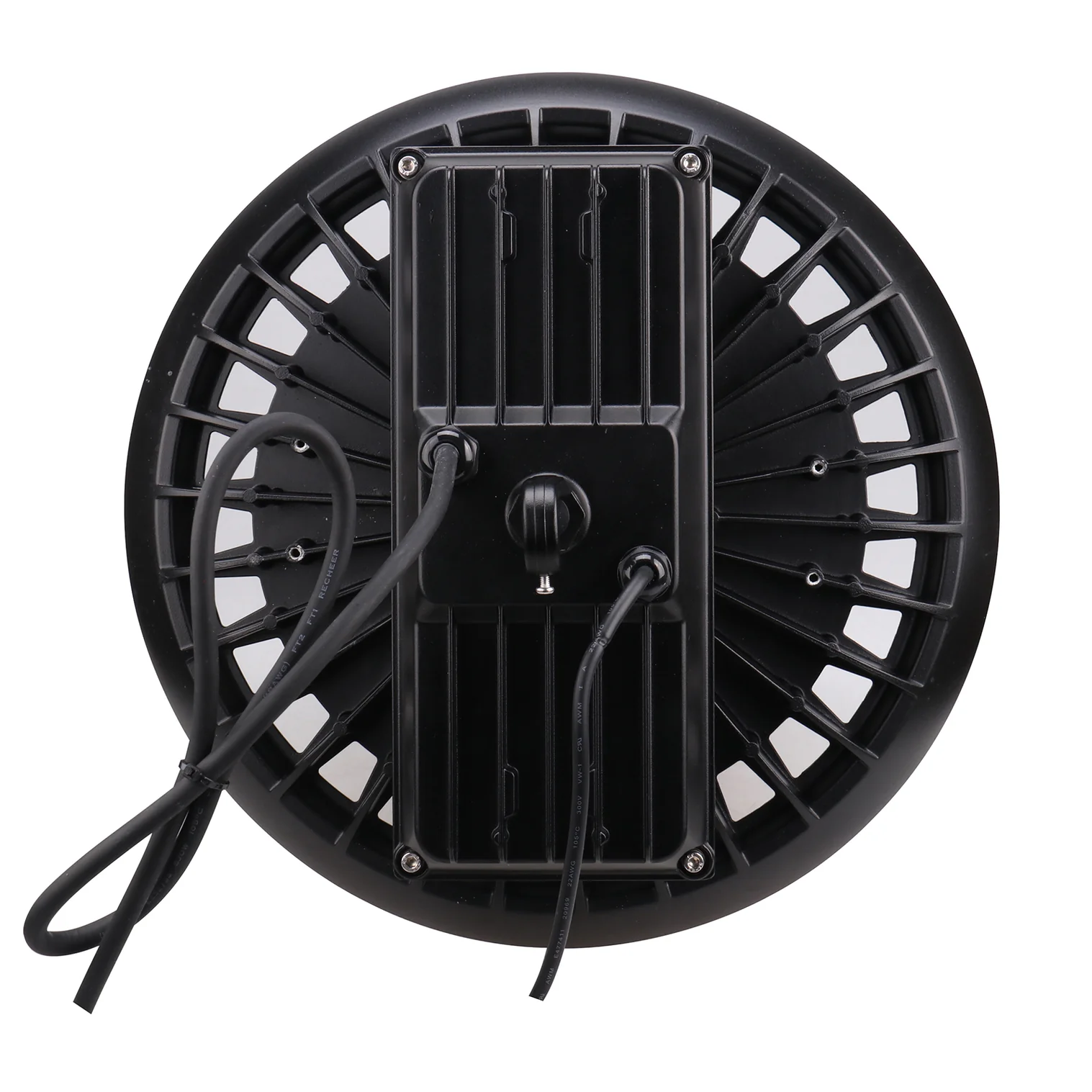

42,000 Lumen 300w UFO High Bay 140lm/w 5000K 5FT CORD 0-10V DIMMING (W/PRE-INSTALLED SENSOR BASE)

 SPECIFICATION SHEET

Our New 2025 300w Wattage Adjustable UFO High Bay product offers our customers 300W at 140 Lumens Per Watt!

Our new High Output UFO high bay luminaires are compact, lightweight for easy installation, and suitable for up to 40 foot mounting heights. DLC 4.3 premium qualified with available models delivering up to 42,000lm. The luminaire offers a 50,000+ hours life rating and is suitable for elevated ambient temperatures.

W/PRE-INSTALLED SENSOR BASE FOR PROGRAMMING OPTIONS

• Increase light output where needed
• Lower light output for maximum energy savings
• Unique ability to make wattage adjustments based on facility needs, now or in the future as your needs change

Applications

Premium HIGH OUTPUT indoor luminaire for hanging or pendant mounting in high ceiling spaces above 50 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.

Construction

Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, corrosion, discoloration, and scratching. Wet Location rated.

Electrical

Input voltages 120-277V models with 0-10V Continuous Dimming.  Operating temperatures -40°F to 113°F (-40°C to 45°C).

Mounting

Steel Hook Mount for hanging standard. Optional adjustable Yoke Mount for surface mounting available.

5ft Whip Cord

Optics

Anti-UV Clear Polycarbonate Ridged Lens with 90° beam angle standard. 90 degree Aluminum and Prismatic Polycarbonate Reflectors. Glare Shield Tempered Glass Drop Lens.

Controls

PRE-INSTALLED SENSOR BASE

Emergency

Installed 90 Minute Emergency Backup Battery Driver options available.

Listings

DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.

Warranty

8 year exclusive limited warranty.

UFO INSTALLATION INSTRUCTIONS
